Network Analyzer

Figure 1. Network Analyzer (NA)
NA GUI

Network Analyzer Control Panel Overview

System Panel

System Panel Button Function Button Function
WP SP Resets the Network Analyzer to default settings. SP some text here
SP some text here SP some text here
SP some text here SP some text here

Marker Panel

Marker Panel Button Function Button Function
TP TP Some text here TP Some text here
TP Some text here TP Some text here

Trace Panel

Trace Panel Button Function Button Function
TP TP Some text here TP Some text here
TP Some text here TP Some text here

Stimulus Panel

Stimulus Panel Button Function Button Function
SP SP Some text here SP Some text here
SP Some text here SP Some text here
SP Some text here SP Some text here

Universal Knob and Arrows

Universal Knob and Arrows Button Function Button Function
UKA UKA Increase or decrease any active numeric value on screen. UKA Both have the same function than the universal knob, Increase or decrease any active numeric value on screen.
UKA Change the granularity steps between fine (yellow button) and coarse (gray button).

Numeric Keypad

NK Enter the numerical value in the active configuration parameter on the screen.

Units Keypad

Units Keypad Button Function Button Function
UK UK Gives the unit of decibels to the entered value. UK Gives the unit of Gigahertz to the entered numeric value.
UK Gives the unit of Megahertz to the entered numeric value.. UK Gives the unit of Kilohertz to the entered numeric value..
UK Some text here.

Channel Buttons

Channel Buttons Button Function Button Function
CB CB Turns on, off and / or selects channel 1 wave output. CB Turns on, off and / or selects channel 2 wave output.
CB Turns on, off and / or selects channel 3 wave output. CB Turns on, off and / or selects channel 4 wave output.

Network Analyzer Functions

To Add Traces

It is possible to add multiple traces of different parameters within the graph of the current channel. To activate traces within the graph, press the button TP in the trace panel. Next, the trace softmenu will be displayed, with the options of: add trace and active trace. To add a new trace within the current graph, select the button TS in the trace softmenu.
Table 1. To Add Trace

NA functions

1 Trace panel.
2 Trace softmenu.
The add trace option will display a menu with the S parameters to be added to the graph. Here you can select the line you want to add. Among the parameter options to be displayed are: S11, S12, S21 and S22. To add any of these, press the button corresponding to the trace: TP , TP , TP and TP inside the S parameters softmenu.
Table 2. To Add Trace

NA functions

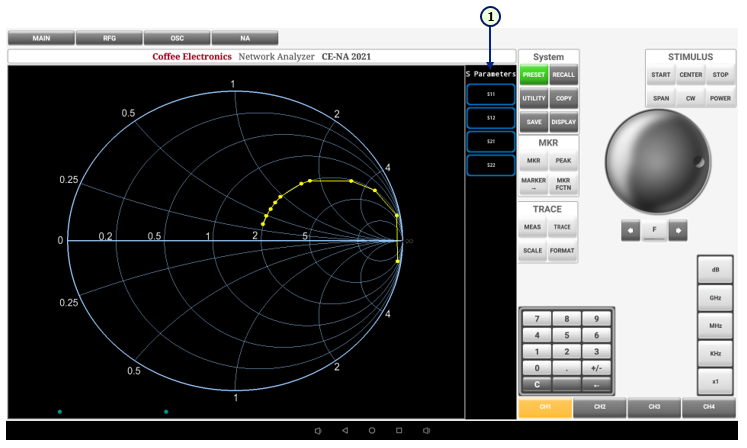

1 S parameters softmenu.
The traces will be added within the graph, with different colors, as shown in the following figure, where the four traces are active within the same representation of the Smith diagram.
Table 3. To Add Trace

NA functions
